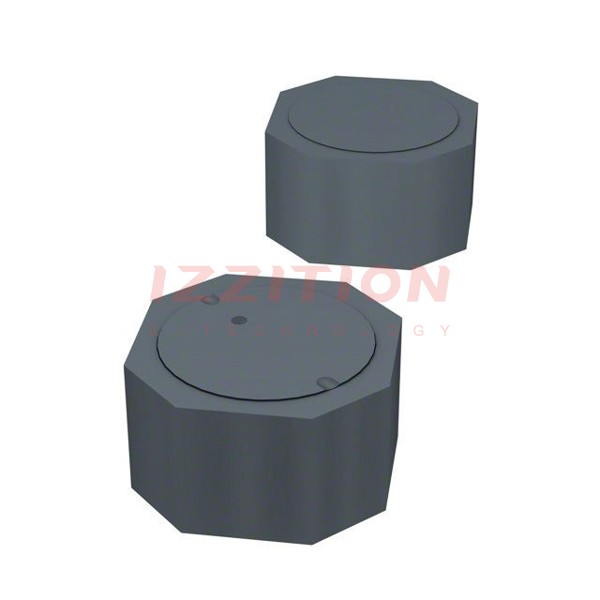

| Part Number | SRU5028A-1R2Y | SRU5028A-2R2Y | SRU5028-1R2Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 µH | 2.2 µH | 1.2 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 3.5 A | 3.2 A | 3.5 A |
| Current - Saturation (Isat) | 3.4A | 2.5A | 3.4A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 22mOhm Max | 27mOhm Max | 16.8mOhm |
| Q @ Freq | 10 @ 7.96MHz | 10 @ 7.96MHz | 10 @ 7.96MHz |
| Frequency - Self Resonant | 200MHz | 130MHz | 200MHz |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
