Please send RFQ , we will respond immediately.

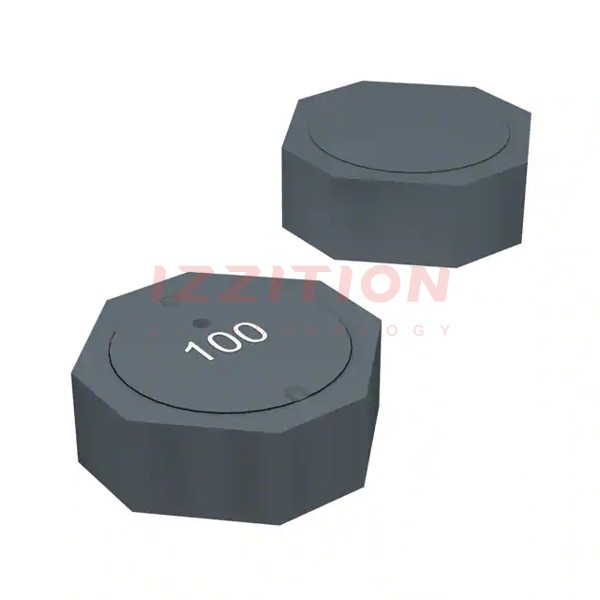

| Part Number | SRU5018-6R8Y | SRU5028-6R8Y | SRU6018-6R8Y | SRU5011-6R8Y | SRU5016-6R8Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH | 6.8 µH | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.45 A | 2 A | 1.9 A | 820 mA | 1.2 A |
| Current - Saturation (Isat) | 1.2A | 1.55A | 1.2A | 680mA | 1.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 50mOhm | 42mOhm | 60mOhm Max | 130mOhm | 50mOhm |
| Q @ Freq | 7.5 @ 7.96MHz | 10 @ 7.96MHz | 8 @ 7.96MHz | 8 @ 7.96MHz | 8 @ 7.96MHz |
| Frequency - Self Resonant | 60MHz | 55MHz | 40MHz | 70MHz | 50MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.047" (1.20mm) | 0.071" (1.80mm) |
