Please send RFQ , we will respond immediately.

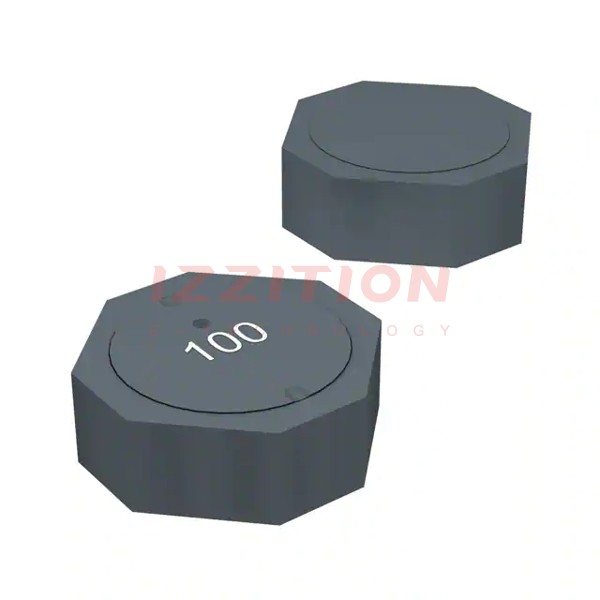

| Part Number | SRU5018-3R5Y | SRU5018-1R5Y | SRU5018-3R3Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 3.5 µH | 1.5 µH | 3.3 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.1 A | 2.5 A | - |
| Current - Saturation (Isat) | 1.7A | 2.4A | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 32mOhm | 15.5mOhm | - |
| Q @ Freq | 9 @ 7.96MHz | 9 @ 7.96MHz | - |
| Frequency - Self Resonant | 90MHz | 160MHz | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
