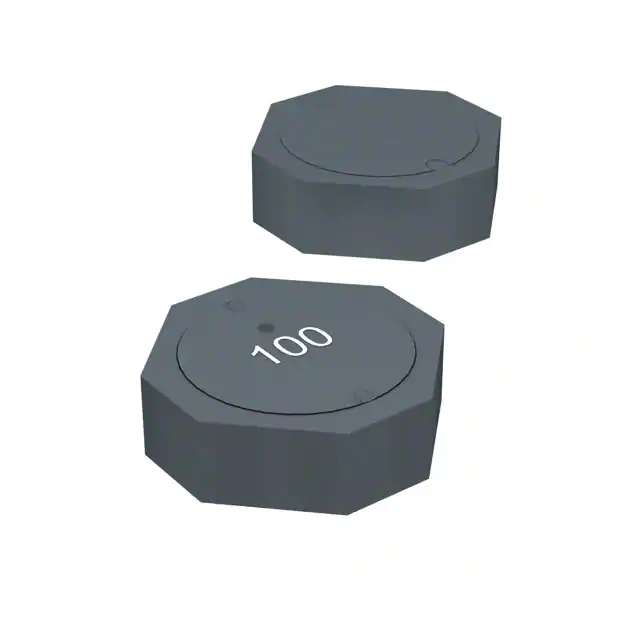

| Part Number | SRU5016-470Y | SRU5018-470Y | SRU2016-470Y | SRU5011-470Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 47 µH | 47 µH | 47 µH | 47 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 460 mA | 540 mA | 310 mA | 320 mA |
| Current - Saturation (Isat) | 420mA | 450mA | 220mA | 260mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 390mOhm | 330mOhm | 1.65Ohm Max | 800mOhm |
| Q @ Freq | 18 @ 2.52MHz | 13 @ 2.52MHz | 15 @ 2.52MHz | 16 @ 2.52MHz |
| Frequency - Self Resonant | 18MHz | 18MHz | 20MHz | 25MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.079" (2.00mm) | 0.071" (1.80mm) | 0.047" (1.20mm) |
