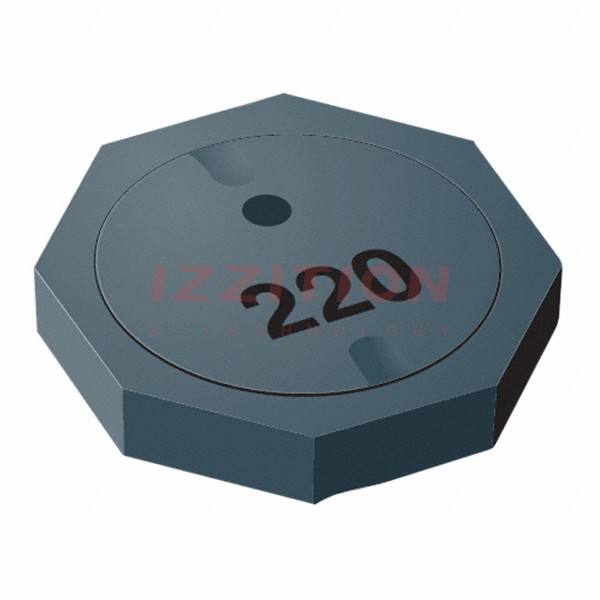

| Part Number | SRU5011-680Y | SRU5018-680Y | SRU5016-680Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 68 µH | 68 µH | 68 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 260 mA | 370 mA | 360 mA |
| Current - Saturation (Isat) | 220mA | 360mA | 330mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.24Ohm | 480mOhm | 560mOhm |
| Q @ Freq | 14 @ 2.52MHz | 12 @ 2.52MHz | 18 @ 2.52MHz |
| Frequency - Self Resonant | 20MHz | 16MHz | 15MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.079" (2.00mm) | 0.071" (1.80mm) |
