Please send RFQ , we will respond immediately.

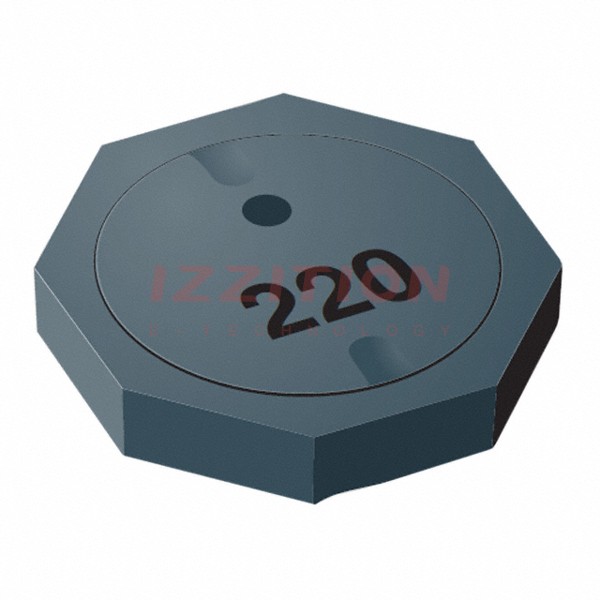

| Part Number | SRU5011-220Y | SRU5018-220Y | SRU5016-220Y | SRU6011-220Y | SRU2011-220Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 22 µH | 22 µH | 22 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 500 mA | 680 mA | 650 mA | 800 mA | 330 mA |
| Current - Saturation (Isat) | 400mA | 650mA | 560mA | 480mA | 270mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 380mOhm | 160mOhm | 195mOhm | 390mOhm Max | 1.58Ohm Max |
| Q @ Freq | 14 @ 2.52MHz | 12 @ 2.52MHz | 15 @ 2.52MHz | 10 @ 2.52MHz | 12 @ 2.52MHz |
| Frequency - Self Resonant | 38MHz | 28MHz | 28MHz | 26MHz | 25MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.079" (2.00mm) | 0.071" (1.80mm) | 0.049" (1.25mm) | 0.047" (1.20mm) |
