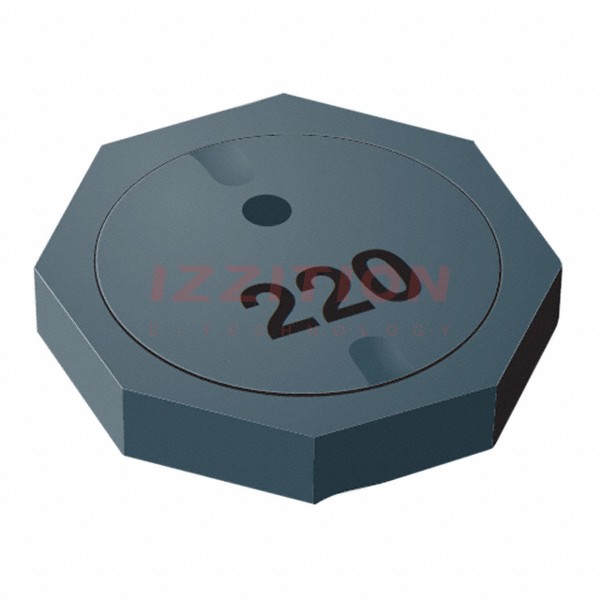

| Part Number | SRU5011-150Y | SRU5018-150Y | SRU5016-150Y | SRU2011-150Y | SRU5011-100Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 15 µH | 15 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 600 mA | 950 mA | 800 mA | 380 mA | 700 mA |
| Current - Saturation (Isat) | 480mA | 800mA | 720mA | 340mA | 580mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 250mOhm | 100mOhm | 130mOhm | 1.2Ohm Max | 170mOhm |
| Q @ Freq | 12 @ 2.52MHz | 12 @ 2.52MHz | 15 @ 2.52MHz | 10 @ 2.52MHz | 12 @ 7.96MHz |
| Frequency - Self Resonant | 42MHz | 40MHz | 32MHz | 40MHz | 50MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.079" (2.00mm) | 0.071" (1.80mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
