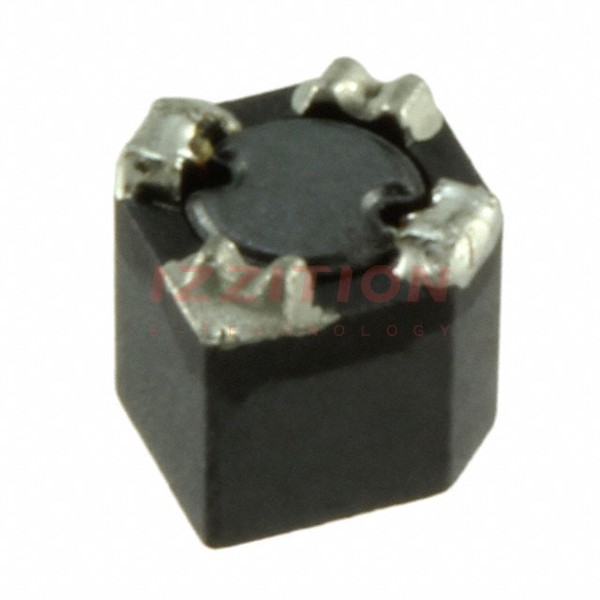

| Part Number | SRU3028A-150Y | SRU5028A-150Y | SRU3028-150Y | SRU3028A-100Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 15 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 660 mA | 1.1 A | 660 mA | 720 mA |
| Current - Saturation (Isat) | 720mA | 1A | 720mA | 860mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 290mOhm Max | 140mOhm Max | 230mOhm | 200mOhm Max |
| Q @ Freq | 18 @ 2.52MHz | 18 @ 2.52MHz | 18 @ 2.52MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 25MHz | 23MHz | 25MHz | 35MHz |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
