Please send RFQ , we will respond immediately.

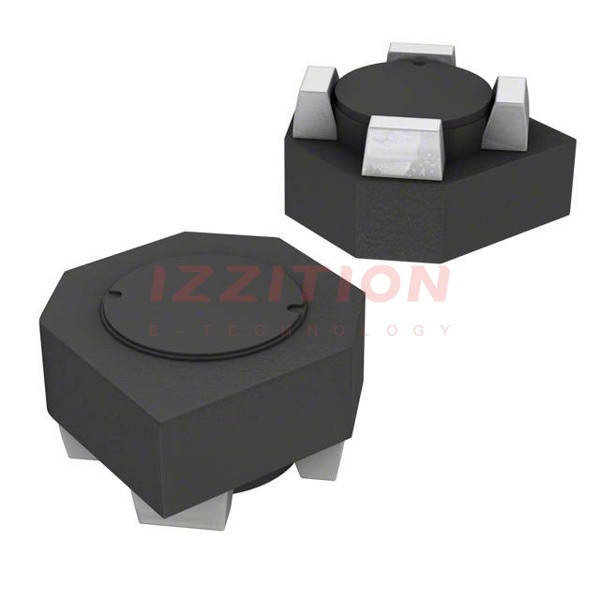

| Part Number | SRU3017-6R8Y | SRU3011-6R8Y | SRU3014-6R8Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1 A | 500 mA | 700 mA |
| Current - Saturation (Isat) | 530mA | 460mA | 780mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 85mOhm | 245mOhm | 230mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 7 @ 7.96MHz | 10 @ 7.96MHz |
| Frequency - Self Resonant | 50MHz | 85MHz | 50MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.047" (1.20mm) | 0.063" (1.60mm) |
