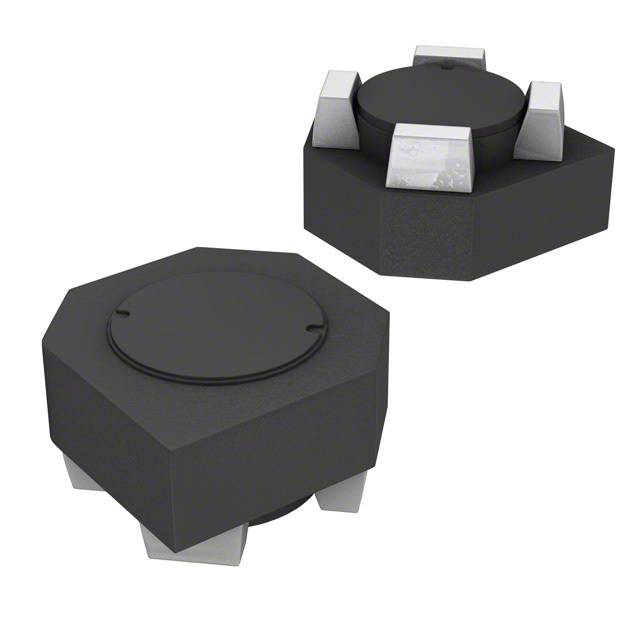

| Part Number | SRU3017-150Y | SRU3014-150Y | SRU3017-100Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 680 mA | 400 mA | 850 mA |
| Current - Saturation (Isat) | 350mA | 460mA | 470mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 175mOhm | 550mOhm Max | 120mOhm |
| Q @ Freq | 20 @ 2.52MHz | 35 @ 2.52MHz | 15 @ 7.96MHz |
| Frequency - Self Resonant | 35MHz | 30MHz | 40MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.063" (1.60mm) | 0.079" (2.00mm) |
