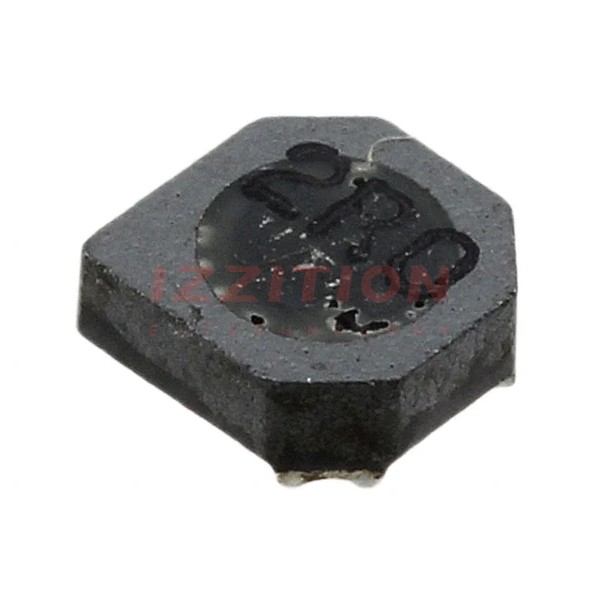

| Part Number | SRU3014-2R0Y | SRU3014-3R0Y | SRU3014-220Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 2 µH | 3 µH | 22 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.1 A | 1 A | 320 mA |
| Current - Saturation (Isat) | 1.3A | 1.1A | 360mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 95mOhm Max | 135mOhm Max | 875mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 12 @ 7.96MHz | 35 @ 2.52MHz |
| Frequency - Self Resonant | 110MHz | 80MHz | 25MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
