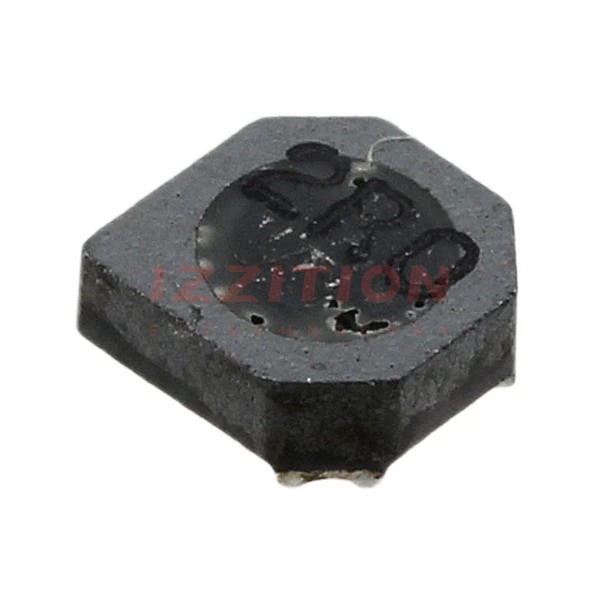

| Part Number | SRU3014-220Y | SRU3017-220Y | SRU3014-2R0Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 2 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 320 mA | 600 mA | 1.1 A |
| Current - Saturation (Isat) | 360mA | 300mA | 1.3A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 875mOhm Max | 250mOhm | 95mOhm Max |
| Q @ Freq | 35 @ 2.52MHz | 20 @ 2.52MHz | 10 @ 7.96MHz |
| Frequency - Self Resonant | 25MHz | 30MHz | 110MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.079" (2.00mm) | 0.063" (1.60mm) |
