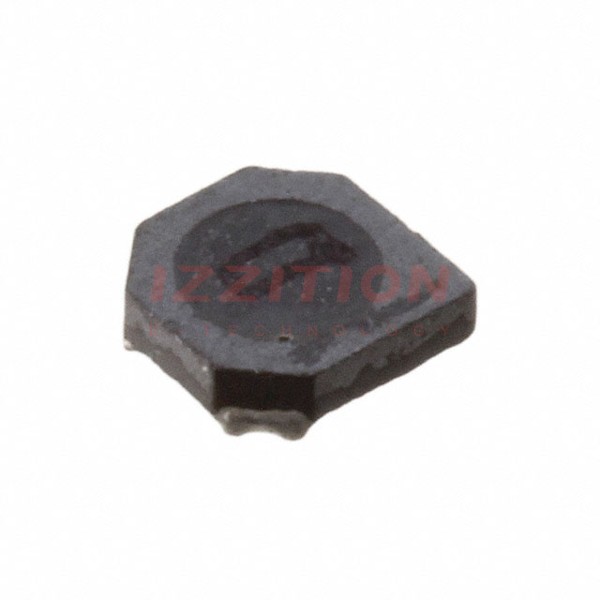

| Part Number | SRU3011-1R5Y | SRU5011-1R5Y | SRU3014-1R5Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.5 µH | 1.5 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.1 A | 1.8 A | 1.55 A |
| Current - Saturation (Isat) | 1A | 1.5A | 1.6A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 57mOhm | 32mOhm | 63mOhm Max |
| Q @ Freq | 7 @ 7.96MHz | 8 @ 7.96MHz | 12 @ 7.96MHz |
| Frequency - Self Resonant | 180MHz | 195MHz | 120MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.063" (1.60mm) |
