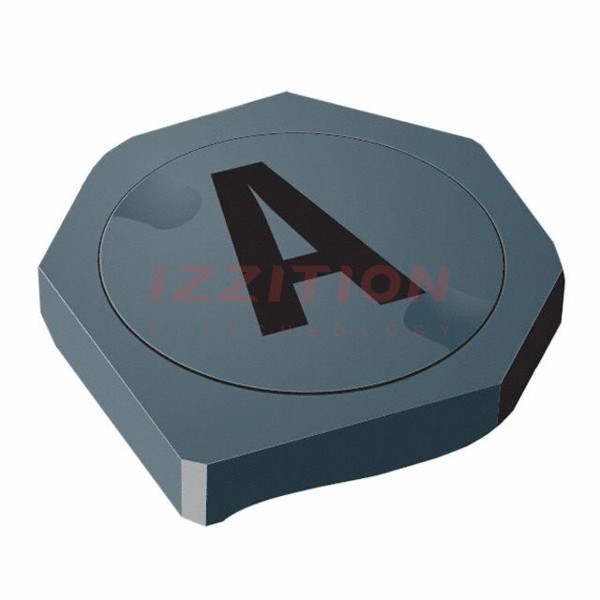

| Part Number | SRU3009-220Y | SRU2009-220Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 220 mA | 220 mA |
| Current - Saturation (Isat) | 250mA | 220mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.45Ohm Max | 2.6Ohm Max |
| Q @ Freq | 20 @ 2.52MHz | 10 @ 2.52MHz |
| Frequency - Self Resonant | 40MHz | 30MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.039" (1.00mm) |
