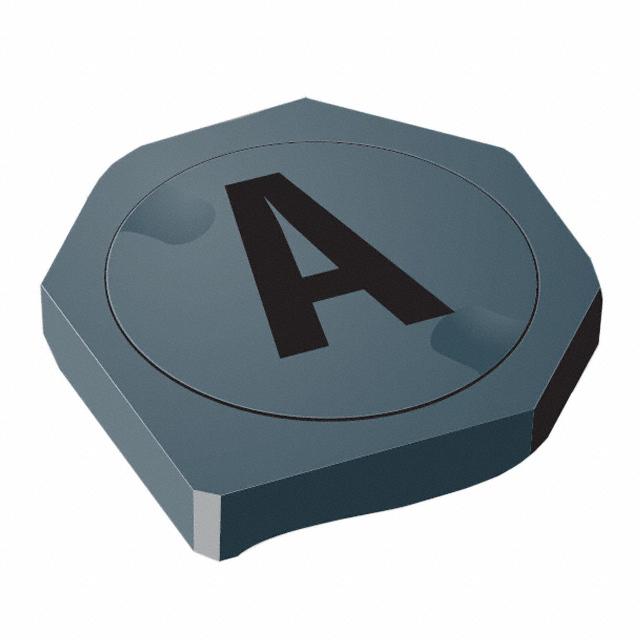

| Part Number | SRU3009-1R3Y | SRU3009-3R3Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.3 µH | 3.3 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1 A | 650 mA |
| Current - Saturation (Isat) | 1.1A | 720mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 115mOhm Max | 225mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 8 @ 7.96MHz |
| Frequency - Self Resonant | 210MHz | 130MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) |
