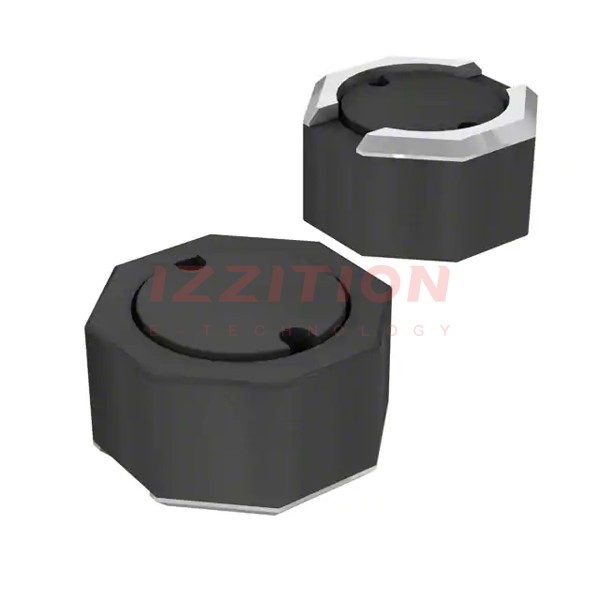

| Part Number | SRU2016-6R0Y | SRU2016-1R0Y | SRU2016-3R0Y | SRU2016-680Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 6 µH | 1 µH | 3 µH | 68 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 900 mA | 2.2 A | 1.5 A | 220 mA |
| Current - Saturation (Isat) | 630mA | 1.6A | 870mA | 170mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 250mOhm Max | 60mOhm Max | 135mOhm Max | 3.51Ohm Max |
| Q @ Freq | 9 @ 7.96MHz | 8 @ 7.96MHz | 8 @ 7.96MHz | 18 @ 2.52MHz |
| Frequency - Self Resonant | 70MHz | 250MHz | 90MHz | 15MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
