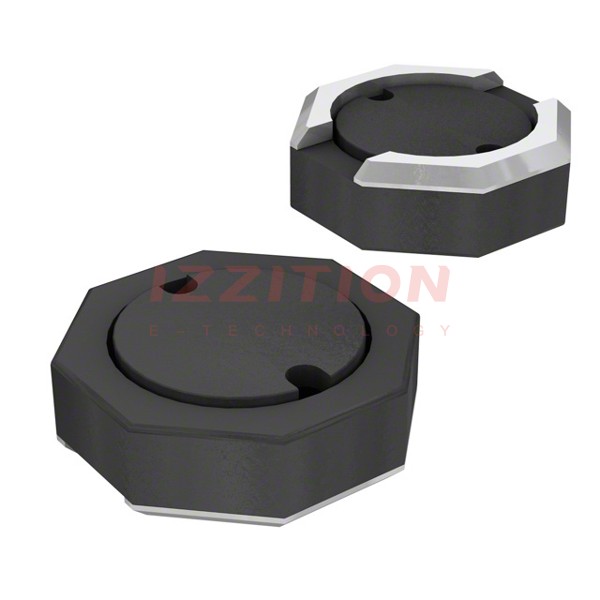

| Part Number | SRU2009-100Y | SRU2009-150Y | SRU2009-1R0Y | SRU3009-100Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 15 µH | 1 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 400 mA | 300 mA | 1.45 A | 280 mA |
| Current - Saturation (Isat) | 350mA | 300mA | 1.3A | 350mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.08Ohm Max | 1.37Ohm Max | 110mOhm Max | 760mOhm Max |
| Q @ Freq | 10 @ 2.52MHz | 10 @ 2.52MHz | 7 @ 7.96MHz | 8.5 @ 2.52MHz |
| Frequency - Self Resonant | 50MHz | 40MHz | 200MHz | 60MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.041" (1.05mm) |
