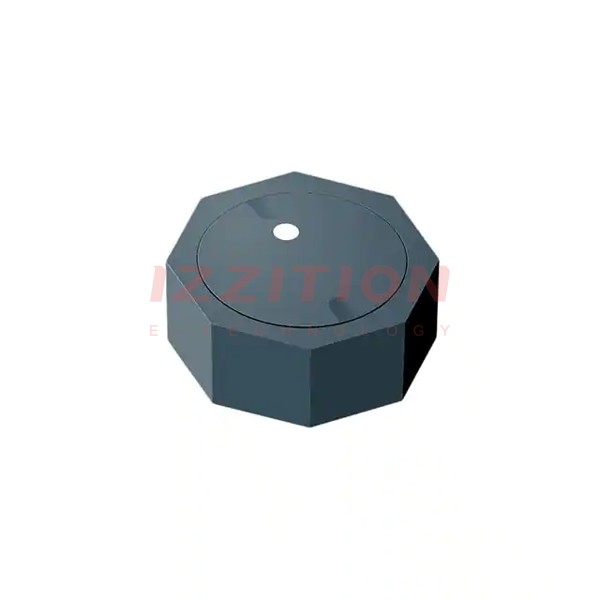

| Part Number | SRU1063A-470Y | SRU1063-470Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 47 µH | 47 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1.4 A | 1.4 A |
| Current - Saturation (Isat) | 1.6A | 1.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 150mOhm Max | 150mOhm Max |
| Q @ Freq | 10 @ 2.52MHz | 10 @ 2.52MHz |
| Frequency - Self Resonant | 6MHz | 6MHz |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 4-SMD | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) |
