Please send RFQ , we will respond immediately.

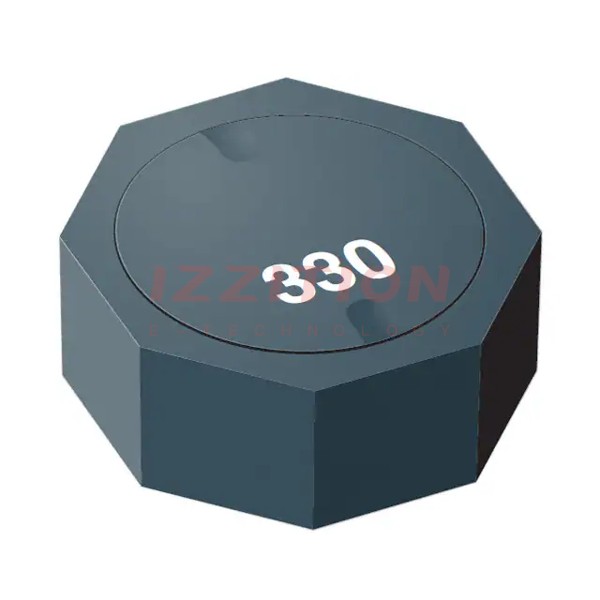

| Part Number | SRU1048A-220Y | SRU1048A-221Y | SRU1048A-820Y | SRU1028A-220Y | SRU1038A-220Y | SRU1048-220Y |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 220 µH | 82 µH | 22 µH | 22 µH | 22 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.6 A | 800 mA | 1.3 A | 1.6 A | 2.2 A | 2.6 A |
| Current - Saturation (Isat) | 2A | 700mA | 1.1A | 1.4A | 2.3A | 2A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 55mOhm Max | 455mOhm Max | 200mOhm Max | 135mOhm Max | 75mOhm Max | 42mOhm |
| Q @ Freq | 22 @ 2.52MHz | 20 @ 796kHz | 24 @ 2.52MHz | 26 @ 2.52MHz | 20 @ 2.52MHz | 22 @ 2.52MHz |
| Frequency - Self Resonant | 12MHz | 4MHz | 5.5MHz | 16MHz | 12MHz | 12MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.201" (5.10mm) | 0.122" (3.10mm) | 0.161" (4.10mm) | 0.201" (5.10mm) |
