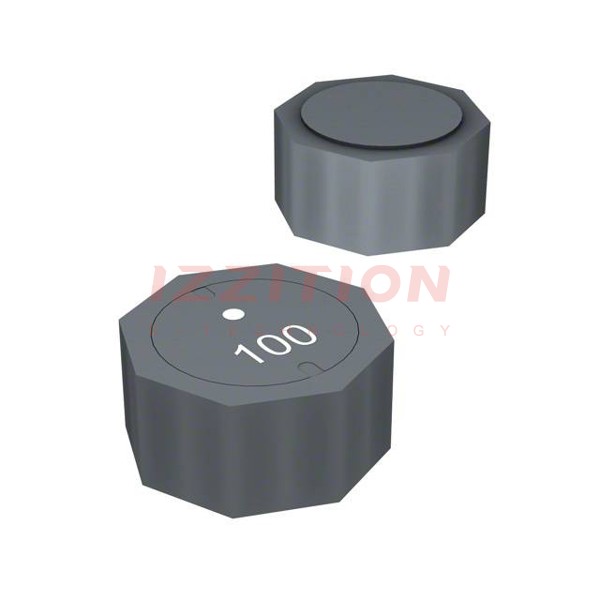

| Part Number | SRU1048-561Y | SRU1048-560Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 560 µH | 56 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 470 mA | 1.6 A |
| Current - Saturation (Isat) | 370mA | 1.4A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 890mOhm | 110mOhm |
| Q @ Freq | 24 @ 796kHz | 26 @ 2.52MHz |
| Frequency - Self Resonant | 1.9MHz | 7MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) | 0.201" (5.10mm) |
