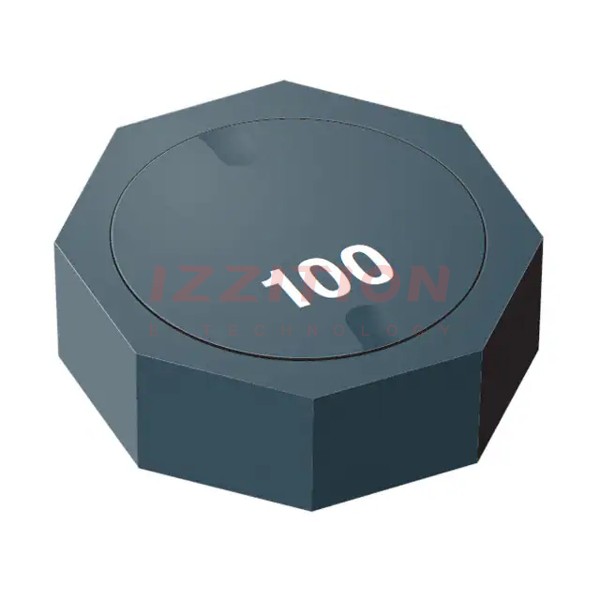

| Part Number | SRU1038A-330Y | SRU1048A-330Y | SRU1038A-331Y | SRU1028A-330Y | SRU1038-330Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 33 µH | 33 µH | 330 µH | 33 µH | 33 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.8 A | 2.1 A | 550 mA | 1.25 A | 1.8 A |
| Current - Saturation (Isat) | 1.8A | 1.7A | 520mA | 1.2A | 1.8A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 112mOhm Max | 84mOhm Max | 1Ohm Max | 180mOhm Max | 86mOhm |
| Q @ Freq | 22 @ 2.52MHz | 24 @ 2.52MHz | 20 @ 796kHz | 24 @ 2.52MHz | 22 @ 2.52MHz |
| Frequency - Self Resonant | 10MHz | 10MHz | 3MHz | 12MHz | 10MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) | 0.201" (5.10mm) | 0.161" (4.10mm) | 0.122" (3.10mm) | 0.161" (4.10mm) |
