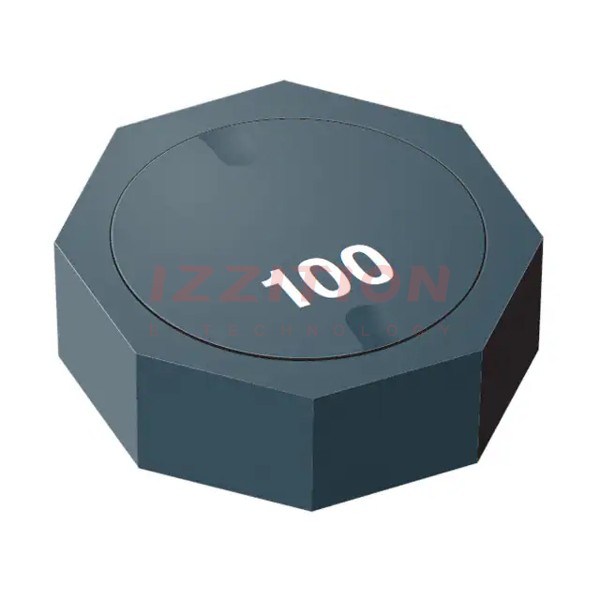

| Part Number | SRU1038A-1R5Y | SRU1038A-3R5Y | SRU1048A-1R5Y | SRU1028A-1R5Y | SRU1038-1R5Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 3.5 µH | 1.5 µH | 1.5 µH | 1.5 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 7.2 A | 5.5 A | 7 A | 6.5 A | 7.2 A |
| Current - Saturation (Isat) | 7A | 5.5A | 7.2A | 6.5A | 7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 7.5mOhm Max | 15mOhm Max | 5.8mOhm Max | 10mOhm Max | 5.2mOhm |
| Q @ Freq | 14 @ 7.96MHz | 14 @ 7.96MHz | 14 @ 7.96MHz | 12 @ 7.96MHz | 14 @ 7.96MHz |
| Frequency - Self Resonant | 65MHz | 35MHz | 70MHz | 80MHz | 65MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) | 0.161" (4.10mm) | 0.201" (5.10mm) | 0.122" (3.10mm) | 0.161" (4.10mm) |
