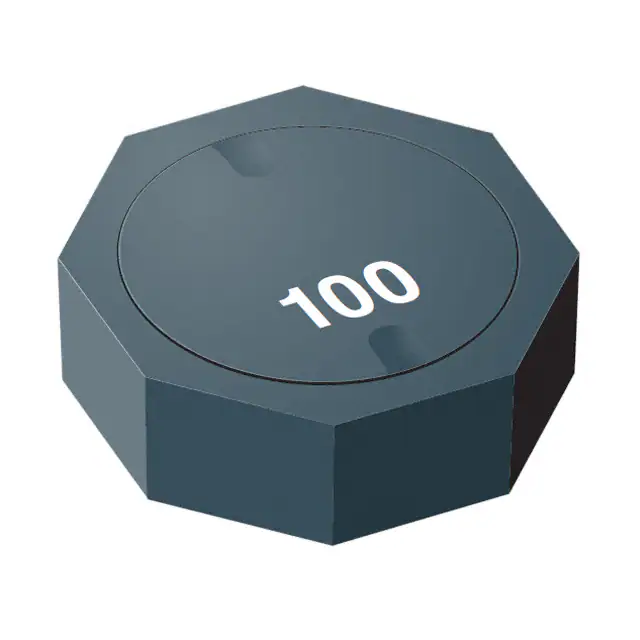

| Part Number | SRU1038A-150Y | SRU1048A-150Y | SRU1038A-151Y | SRU1028A-150Y | SRU1038-150Y | SRU1038A-100Y |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 150 µH | 15 µH | 15 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.8 A | 3.2 A | 900 mA | 2 A | 2.8 A | 3.8 A |
| Current - Saturation (Isat) | 2.7A | 2.7A | 800mA | 2A | 2.7A | 3.6A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 50mOhm Max | 40mOhm Max | 476mOhm Max | 90mOhm Max | 37mOhm | 35mOhm Max |
| Q @ Freq | 24 @ 2.52MHz | 30 @ 2.52MHz | 20 @ 796kHz | 26 @ 2.52MHz | 24 @ 2.52MHz | 24 @ 2.52MHz |
| Frequency - Self Resonant | 16MHz | 14MHz | 5MHz | 22MHz | 16MHz | 20MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) | 0.201" (5.10mm) | 0.161" (4.10mm) | 0.122" (3.10mm) | 0.161" (4.10mm) | 0.161" (4.10mm) |
