Please send RFQ , we will respond immediately.

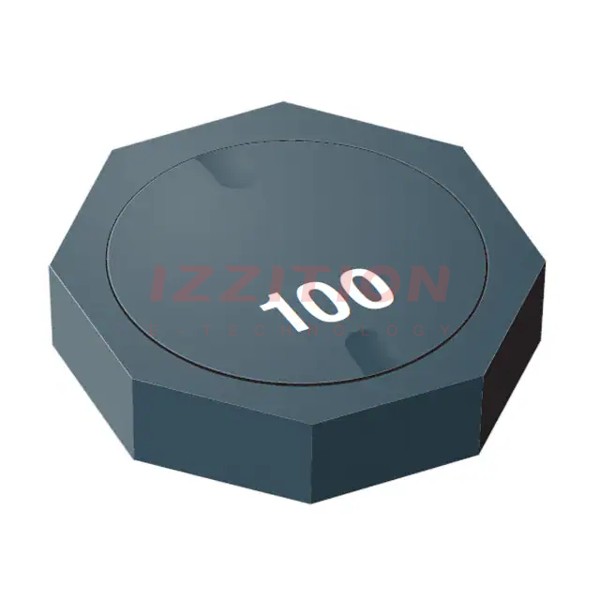

| Part Number | SRU1028A-101Y | SRU1048A-101Y | SRU1028A-121Y | SRU1028A-151Y | SRU1038A-101Y | SRU1028-101Y | SRU1028A-100Y |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 100 µH | 120 µH | 150 µH | 100 µH | 100 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 850 mA | 1.2 A | 700 mA | 650 mA | 1 A | 850 mA | 2.8 A |
| Current - Saturation (Isat) | 800mA | 1A | 700mA | 650mA | 1.1A | 800mA | 2.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 470mOhm Max | 220mOhm Max | 560mOhm Max | 680mOhm Max | 300mOhm Max | 365mOhm | 53mOhm Max |
| Q @ Freq | 20 @ 796kHz | 26 @ 796kHz | 18 @ 796kHz | 18 @ 796kHz | 24 @ 796kHz | 20 @ 796kHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 7MHz | 5MHz | 6MHz | 5MHz | 6MHz | 7MHz | 25MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.201" (5.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.161" (4.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) |
