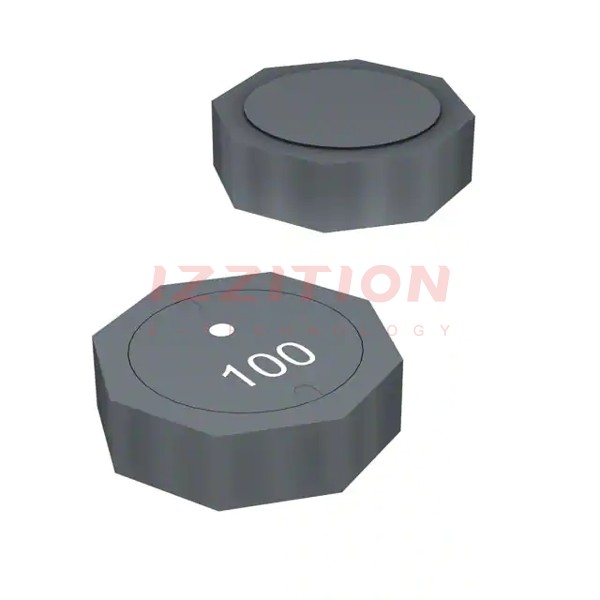

| Part Number | SRU1028-680Y | SRU1038-680Y | SRU1048-680Y | SRU1028A-680Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 68 µH | 68 µH | 68 µH | 68 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1 A | 1.1 A | 1.4 A | 1 A |
| Current - Saturation (Isat) | 900mA | 1.3A | 1.25A | 900mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 232mOhm | 166mOhm | 127mOhm | 300mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | 24 @ 2.52MHz | 24 @ 2.52MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 9MHz | 7MHz | 6MHz | 9MHz |
| Ratings | - | - | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.161" (4.10mm) | 0.201" (5.10mm) | 0.122" (3.10mm) |
