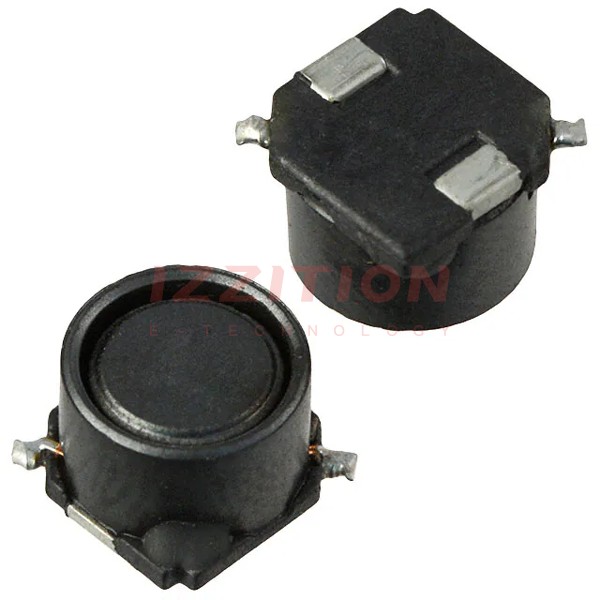

| Part Number | SRR7045-3R9M | SRR7045-3R3M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.9 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.71 A | 2.5 A |
| Current - Saturation (Isat) | 2.43A | 2.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 28mOhm Max | 27mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 10 @ 7.96MHz |
| Frequency - Self Resonant | 40MHz | 43MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
