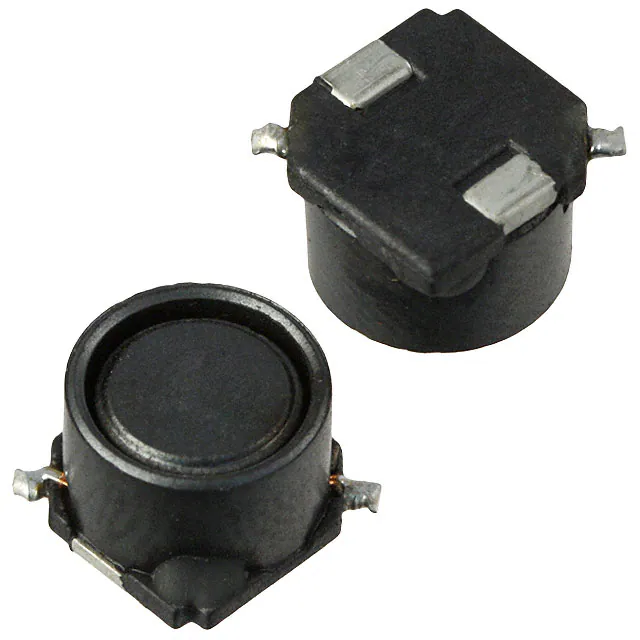

| Part Number | SRR7045-391M | SRR7045-331M | SRR7045-390M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 390 µH | 330 µH | 39 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 350 mA | 400 mA | 1.1 A |
| Current - Saturation (Isat) | 225mA | 250mA | 800mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.2Ohm Max | 730mOhm Max | 130mOhm Max |
| Q @ Freq | 27 @ 796kHz | 65 @ 796kHz | 26 @ 2.52MHz |
| Frequency - Self Resonant | 5MHz | 4MHz | 13MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
