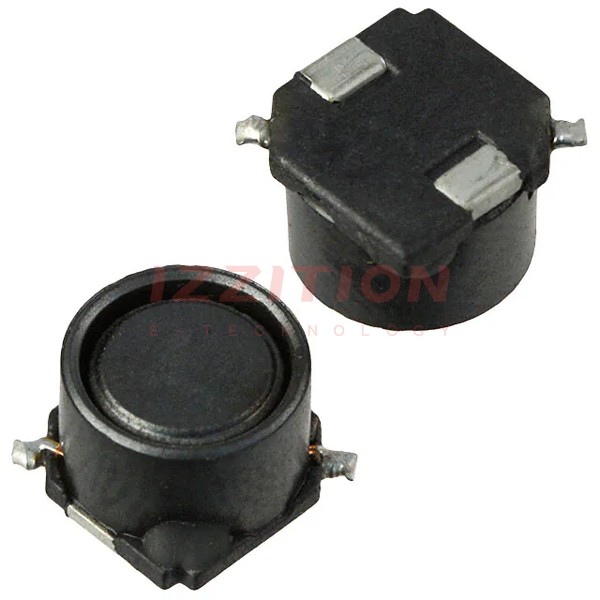

| Part Number | SRR7045-121M | SRR7045-151M | SRR7045-221M | SRR7045-181M | SRR7045-821M | SRR7045-101M | SRR7045-120M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 150 µH | 220 µH | 180 µH | 820 µH | 100 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 600 mA | 530 mA | 450 mA | 475 mA | 250 mA | 650 mA | 1.85 A |
| Current - Saturation (Isat) | 450mA | 410mA | 360mA | 375mA | 175mA | 500mA | 1.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 420mOhm Max | 480mOhm Max | 700mOhm Max | 660mOhm Max | 2.2Ohm Max | 300mOhm Max | 50mOhm Max |
| Q @ Freq | 30 @ 796kHz | 51 @ 796kHz | 44 @ 796kHz | 52 @ 796kHz | 26 @ 796kHz | 40 @ 796kHz | 27 @ 2.52MHz |
| Frequency - Self Resonant | 7MHz | 7MHz | 5MHz | 5MHz | 3MHz | 8MHz | 23MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
