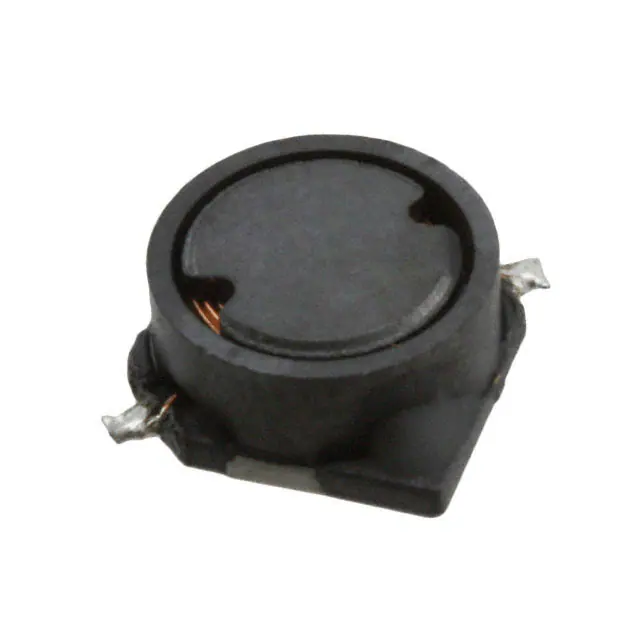

| Part Number | SRR7032-680M | SRR7032-681M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 680 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 600 mA | 160 mA |
| Current - Saturation (Isat) | 700mA | 150mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 380mOhm Max | 3.75Ohm Max |
| Q @ Freq | 22 @ 2.52MHz | 58 @ 796kHz |
| Frequency - Self Resonant | 16MHz | 3.8MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) |
