Please send RFQ , we will respond immediately.

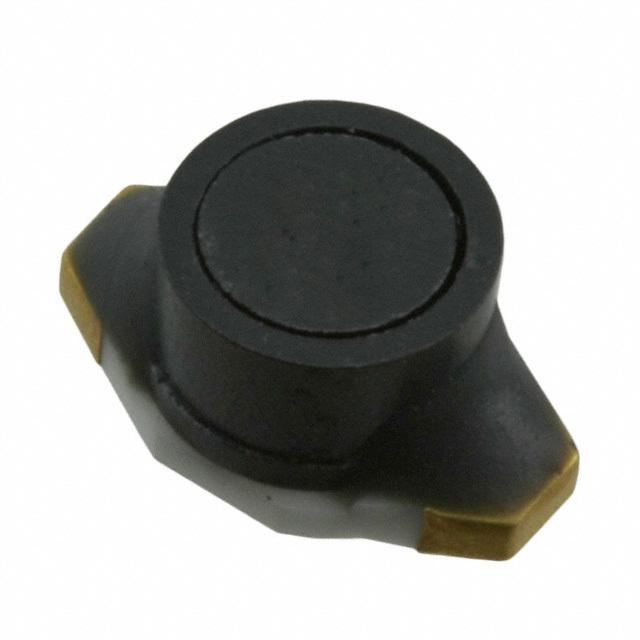

| Part Number | SRR6603-472ML | SRR6603-470ML | SRR6603-471ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 mH | 47 µH | 470 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 60 mA | 500 mA | 190 mA |
| Current - Saturation (Isat) | 21mA | 240mA | 60mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 13.9Ohm Max | 230mOhm Max | 1.8Ohm Max |
| Q @ Freq | 50 @ 100kHz | 40 @ 100kHz | 40 @ 100kHz |
| Frequency - Self Resonant | 1MHz | 20MHz | 4MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
