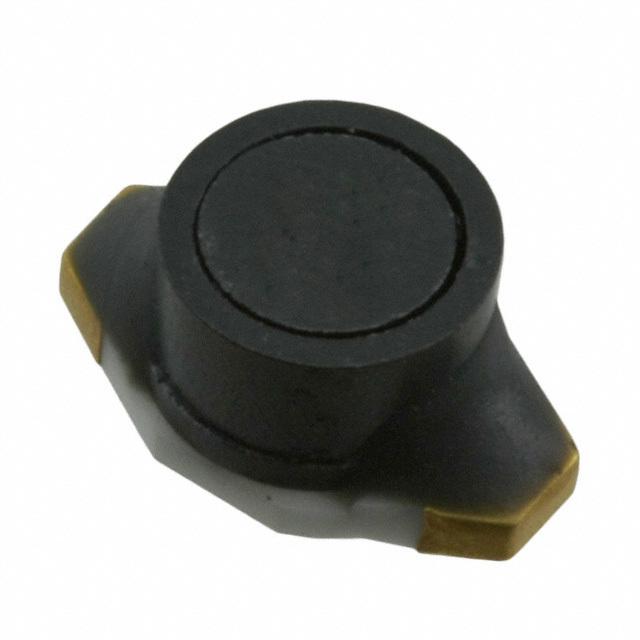

| Part Number | SRR6603-2R2ML | SRR6603-222ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 mH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.8 A | 100 mA |
| Current - Saturation (Isat) | 920mA | 28mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 50mOhm Max | 8.5Ohm Max |
| Q @ Freq | 40 @ 200kHz | 50 @ 100kHz |
| Frequency - Self Resonant | 120MHz | 2MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
