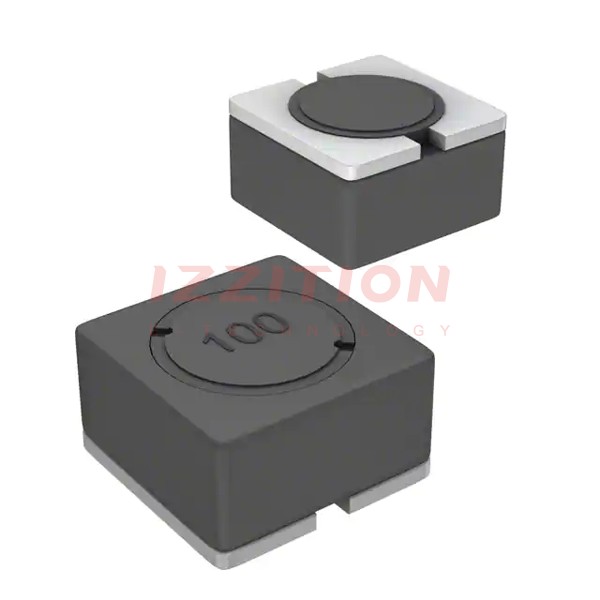

| Part Number | SRR6038-330Y | SRR6038-390Y | SRR6028-330Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 33 µH | 39 µH | 33 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.1 A | 1 A | 1.15 A |
| Current - Saturation (Isat) | 1.2A | 1.1A | 920mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 124mOhm Max | 138mOhm Max | 155mOhm Max |
| Q @ Freq | 8.6 @ 2.52MHz | 8.3 @ 2.52MHz | 10 @ 2.52MHz |
| Frequency - Self Resonant | 12.5MHz | 11.8MHz | 18MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.118" (3.00mm) |
