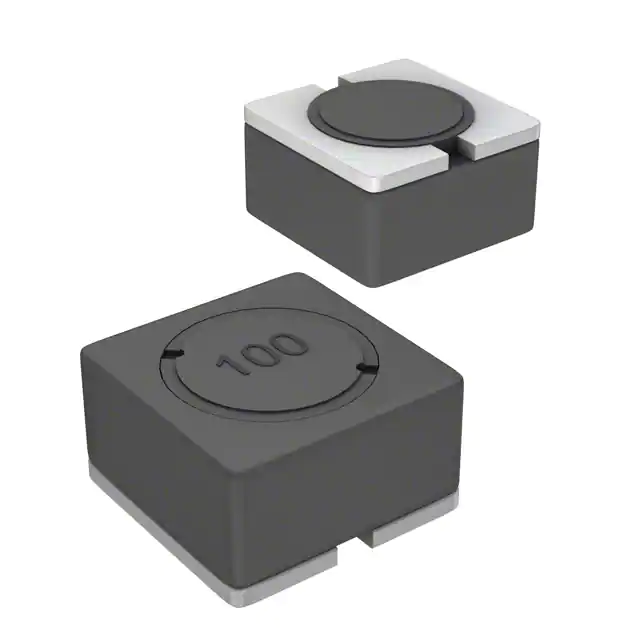

| Part Number | SRR6038-101Y | SRR6028-101Y | SRR6038-100Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 100 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 650 mA | 580 mA | 2 A |
| Current - Saturation (Isat) | 680mA | 550mA | 2.05A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 358mOhm Max | 500mOhm Max | 38mOhm Max |
| Q @ Freq | 6.7 @ 796kHz | 8.5 @ 796kHz | 8.8 @ 2.52MHz |
| Frequency - Self Resonant | 6.2MHz | 14MHz | 24.9MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.118" (3.00mm) | 0.157" (4.00mm) |
