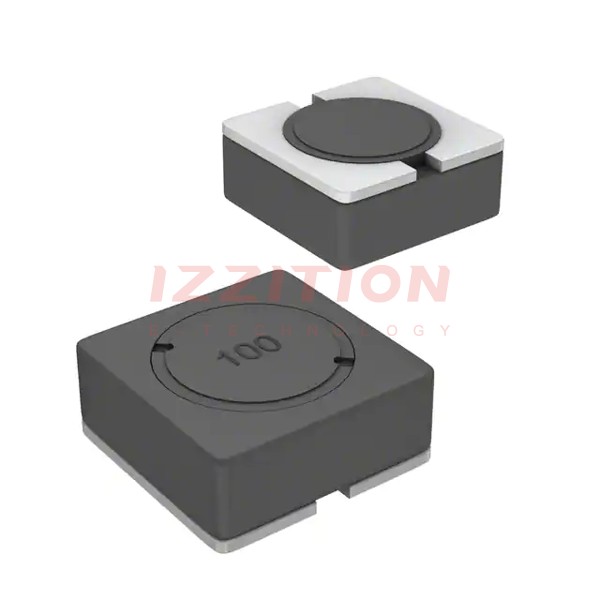

| Part Number | SRR6028-2R5Y | SRR6028-1R5Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.5 µH | 1.5 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.8 A | 3.4 A |
| Current - Saturation (Isat) | 3A | 3.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 25mOhm Max | 14mOhm Max |
| Q @ Freq | 8.5 @ 7.96MHz | 8 @ 7.96MHz |
| Frequency - Self Resonant | 50MHz | 55MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
