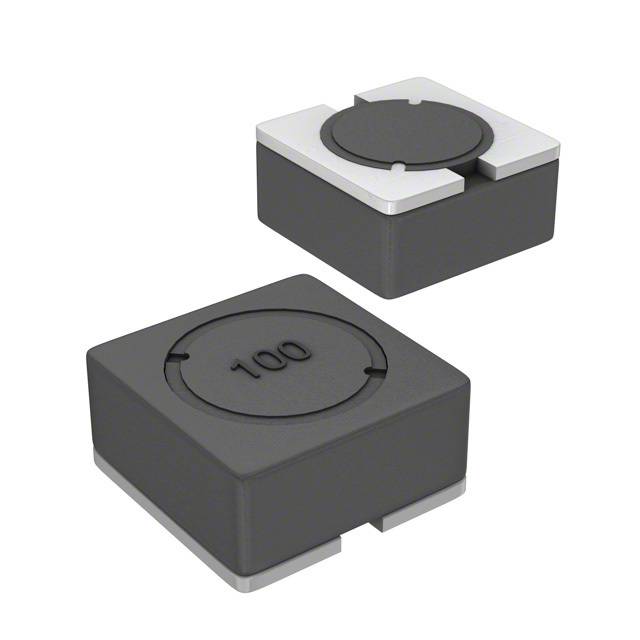

| Part Number | SRR5028-820Y | SRR6028-820Y | SRR5018-820Y | SRR5028-120Y | SRR5028-220Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 82 µH | 82 µH | 82 µH | 12 µH | 22 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 520 mA | 700 mA | 380 mA | 1.46 A | 1.15 A |
| Current - Saturation (Isat) | 500mA | 560mA | 450mA | 1.25A | 1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 430mOhm Max | 400mOhm Max | 950mOhm Max | 80mOhm Max | 120mOhm Max |
| Q @ Freq | 8 @ 2.52MHz | 9 @ 796kHz | 9.1 @ 2.52MHz | 11 @ 2.52MHz | 7 @ 2.52MHz |
| Frequency - Self Resonant | 9MHz | 14MHz | 11MHz | 28MHz | 20MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
