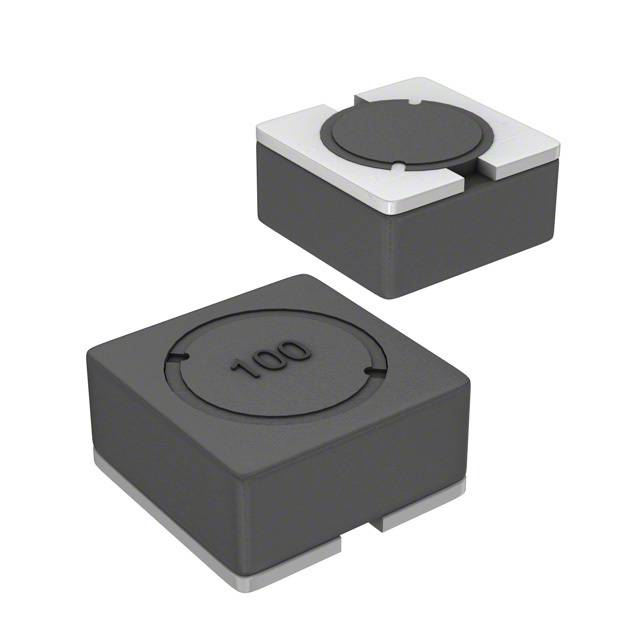

| Part Number | SRR5028-150Y | SRR6028-150Y | SRR5028-180Y | SRR5028-151Y | SRR5018-150Y | SRR5028-100Y | SRR5028-120Y |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 18 µH | 150 µH | 15 µH | 10 µH | 12 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.37 A | 1.7 A | 1.25 A | 330 mA | 950 mA | 1.5 A | 1.46 A |
| Current - Saturation (Isat) | 1.15A | 1.3A | 1.1A | 350mA | 1.1A | 1.4A | 1.25A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 100mOhm Max | 78mOhm Max | 110mOhm Max | 900mOhm Max | 190mOhm Max | 70mOhm Max | 80mOhm Max |
| Q @ Freq | 9 @ 2.52MHz | 9.5 @ 2.52MHz | 10 @ 2.52MHz | 7 @ 796kHz | 12.7 @ 2.52MHz | 9 @ 2.52MHz | 11 @ 2.52MHz |
| Frequency - Self Resonant | 22MHz | 22MHz | 20MHz | 7.5MHz | 32MHz | 30MHz | 28MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
