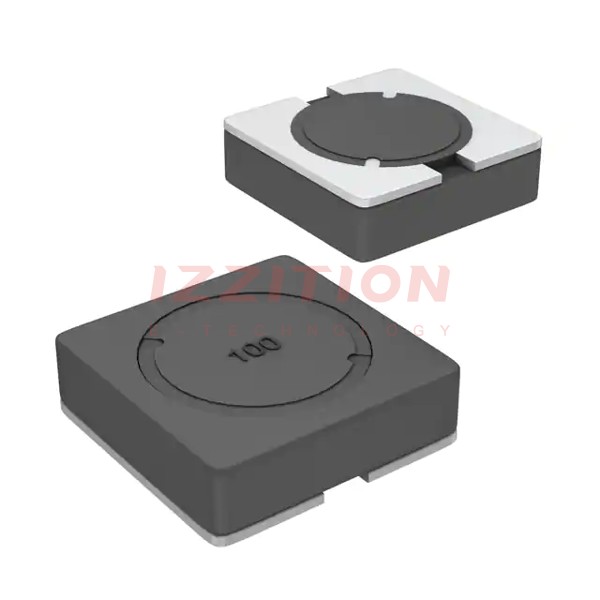

| Part Number | SRR5018-2R5Y | SRR5018-7R5Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.5 µH | 7.5 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.4 A | 1.35 A |
| Current - Saturation (Isat) | 2.7A | 1.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 40mOhm Max | 90mOhm Max |
| Q @ Freq | 8.6 @ 7.96MHz | 7.9 @ 7.96MHz |
| Frequency - Self Resonant | 74MHz | 42MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
