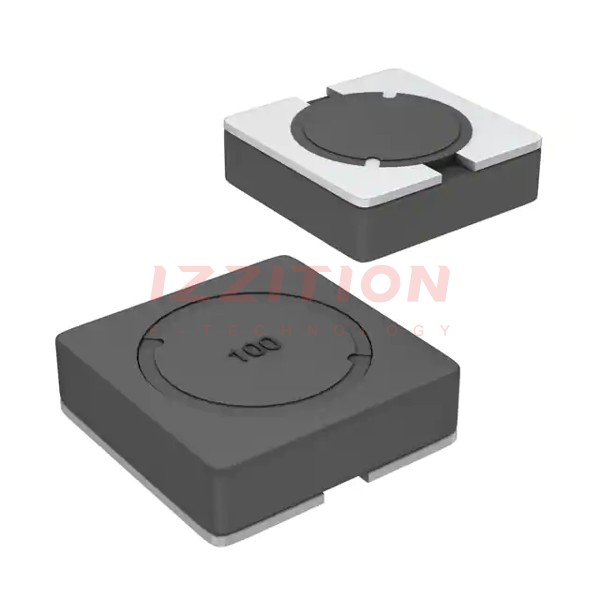

| Part Number | SRR5018-100Y | SRR5018-101Y | SRR5018-150Y | SRR5028-100Y | SRR5018-120Y | SRR5018-180Y |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 100 µH | 15 µH | 10 µH | 12 µH | 18 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.1 A | 350 mA | 950 mA | 1.5 A | 1 A | 900 mA |
| Current - Saturation (Isat) | 1.25A | 420mA | 1.1A | 1.4A | 1.15A | 1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 130mOhm Max | 1.1Ohm Max | 190mOhm Max | 70mOhm Max | 160mOhm Max | 210mOhm Max |
| Q @ Freq | 11 @ 2.52MHz | 13.1 @ 796kHz | 12.7 @ 2.52MHz | 9 @ 2.52MHz | 8.6 @ 2.52MHz | 8.8 @ 2.52MHz |
| Frequency - Self Resonant | 41MHz | 10MHz | 32MHz | 30MHz | 39MHz | 29MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
