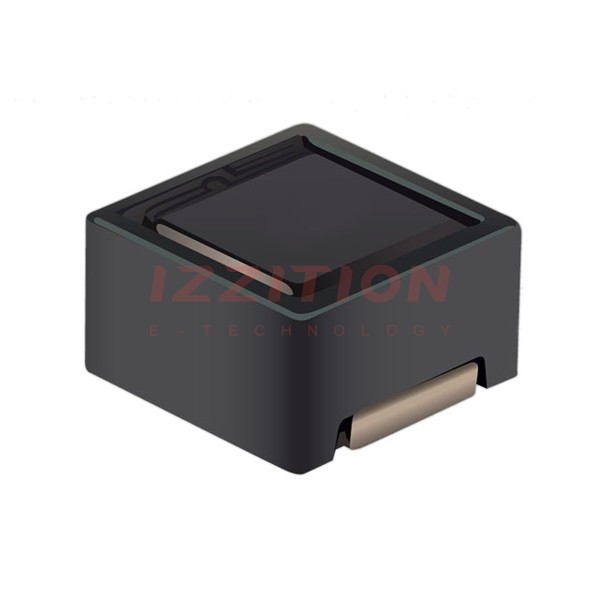

| Part Number | SRR4828A-680M | SRR4528A-680M | SRR4828A-180M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 68 µH | 68 µH | 18 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 900 mA | 700 mA | 1.7 A |
| Current - Saturation (Isat) | 380mA | 410mA | 800mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 370mOhm Max | 452mOhm Max | 160mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 11MHz | 12MHz | 22MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard, Corner Terminals | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.110" (2.80mm) | 0.118" (3.00mm) |
