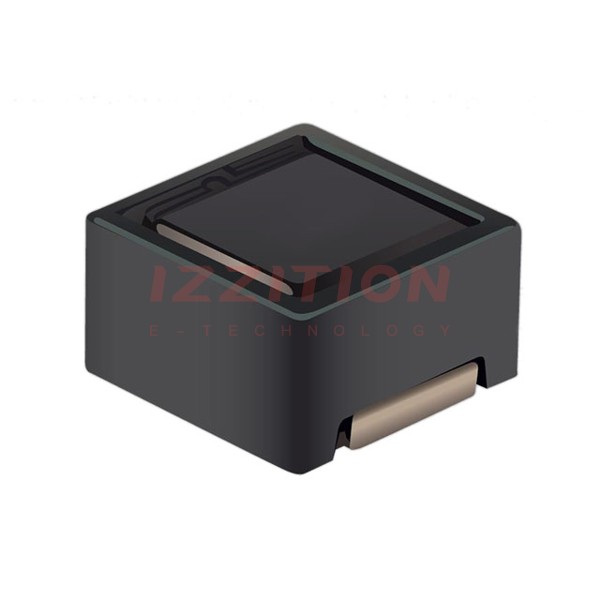

| Part Number | SRR4828A-330M | SRR4528A-330M | SRR4818A-330M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 33 µH | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.4 A | 950 mA | 900 mA |
| Current - Saturation (Isat) | 600mA | 590mA | 560mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 260mOhm Max | 239mOhm Max | 500mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 15MHz | 18MHz | 20MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard, Corner Terminals | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.110" (2.80mm) | 0.079" (2.00mm) |
