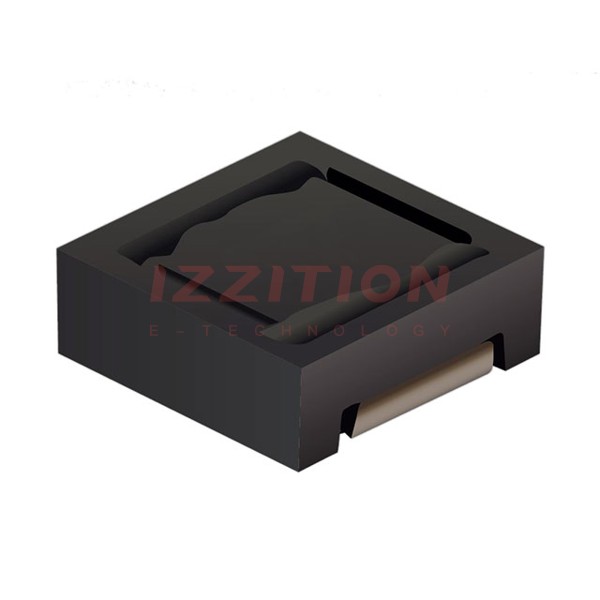

| Part Number | SRR4818A-2R2Y | SRR4818A-8R2Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.2 µH | 8.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 3.5 A | 1.9 A |
| Current - Saturation (Isat) | 2.43A | 1.15A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 45mOhm Max | 130mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 90MHz | 43MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
