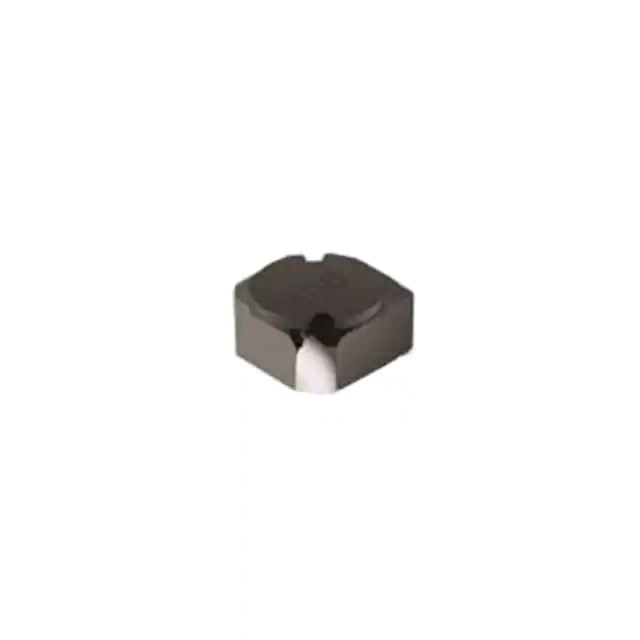

| Part Number | SRR4528A-391M | SRR4528A-331M | SRR4528A-390M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 390 µH | 330 µH | 39 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 280 mA | 320 mA | 900 mA |
| Current - Saturation (Isat) | 170mA | 180mA | 570mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.38Ohm Max | 2.16Ohm Max | 272mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 4MHz | 4.5MHz | 16MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals | Nonstandard, Corner Terminals |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
