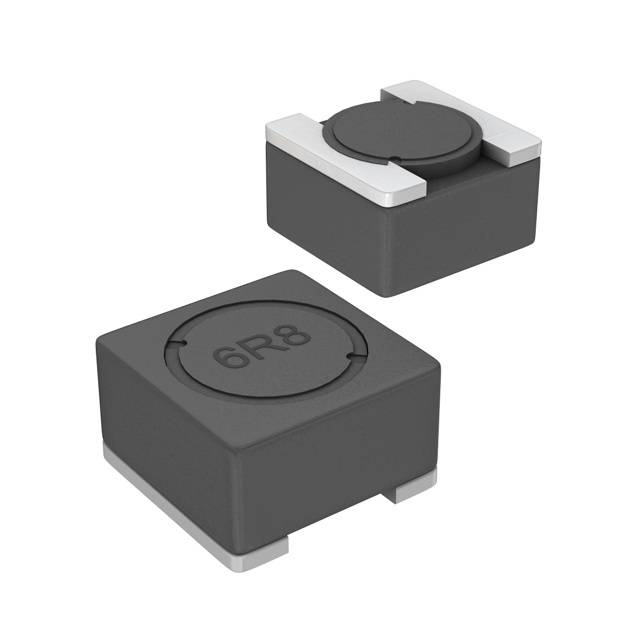

| Part Number | SRR4028-5R6Y | SRR4018-5R6Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 µH | 5.6 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1.38 A | 1.64 A |
| Current - Saturation (Isat) | 1.2A | 1.25A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 85mOhm Max | 90mOhm Max |
| Q @ Freq | 9.56 @ 7.96MHz | 7 @ 7.96MHz |
| Frequency - Self Resonant | 69MHz | 57MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1919 (4848 Metric) | 1919 (4848 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.079" (2.00mm) |
