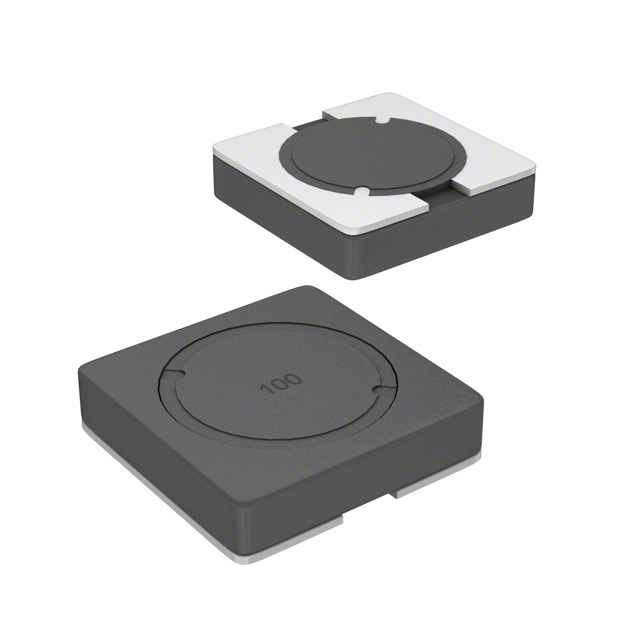

| Part Number | SRR4011-820YL | SRR4011-220YL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 82 µH | 22 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 330 mA | 600 mA |
| Current - Saturation (Isat) | 300mA | 570mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 2.2Ohm Max | 580mOhm Max |
| Q @ Freq | 13 @ 2.52MHz | 13 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz | 23MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) |
