SRR4011-4R7YL
  • Share:

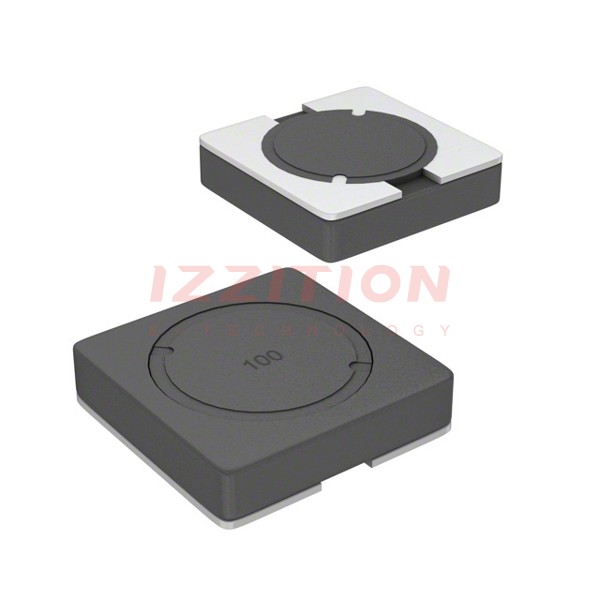

Bourns Inc. SRR4011-4R7YL

Manufacturer No:
SRR4011-4R7YL
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRR4011-4R7YL Datasheet
ECAD Model:
-
Description:
FIXED IND 4.7UH 1.35A 165MOHM SM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:4.7 µH
Tolerance:±30%
Current Rating (Amps):1.35 A
Current - Saturation (Isat):1.2A
Shielding:Shielded
DC Resistance (DCR):165mOhm Max
Q @ Freq:13 @ 7.96MHz
Frequency - Self Resonant:61MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max):0.051" (1.30mm)
0 Remaining View Similar

In Stock

$0.92
1,042

Please send RFQ , we will respond immediately.

Similar Products

Part Number SRR4011-4R7YL SRR3011-4R7YL
Manufacturer Bourns Inc. Bourns Inc.
Product Status Active Active
Type Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite
Inductance 4.7 µH 4.7 µH
Tolerance ±30% ±30%
Current Rating (Amps) 1.35 A 900 mA
Current - Saturation (Isat) 1.2A 750mA
Shielding Shielded Shielded
DC Resistance (DCR) 165mOhm Max 125mOhm Max
Q @ Freq 13 @ 7.96MHz 9 @ 7.96MHz
Frequency - Self Resonant 61MHz 69MHz
Ratings - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz
Features - -
Mounting Type Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard
Supplier Device Package - -
Size / Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.051" (1.30mm) 0.051" (1.30mm)
