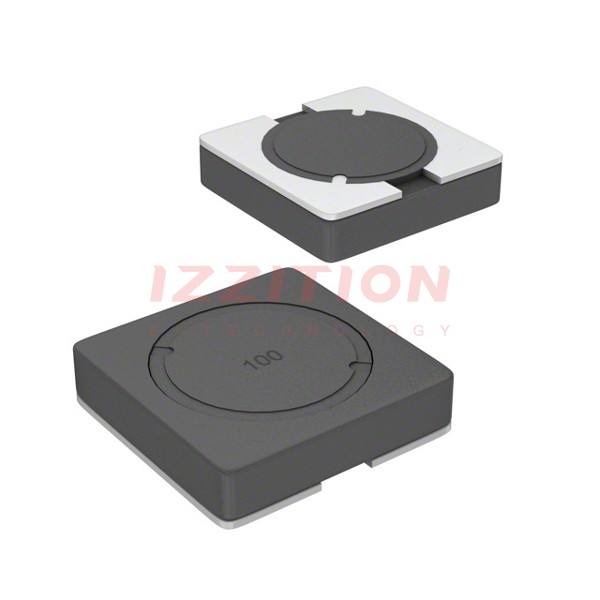

| Part Number | SRR4011-220YL | SRR4011-820YL | SRR3011-220YL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 82 µH | 22 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 600 mA | 330 mA | 380 mA |
| Current - Saturation (Isat) | 570mA | 300mA | 320mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 580mOhm Max | 2.2Ohm Max | 680mOhm Max |
| Q @ Freq | 13 @ 2.52MHz | 13 @ 2.52MHz | 11 @ 2.52MHz |
| Frequency - Self Resonant | 23MHz | 11MHz | 31MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
