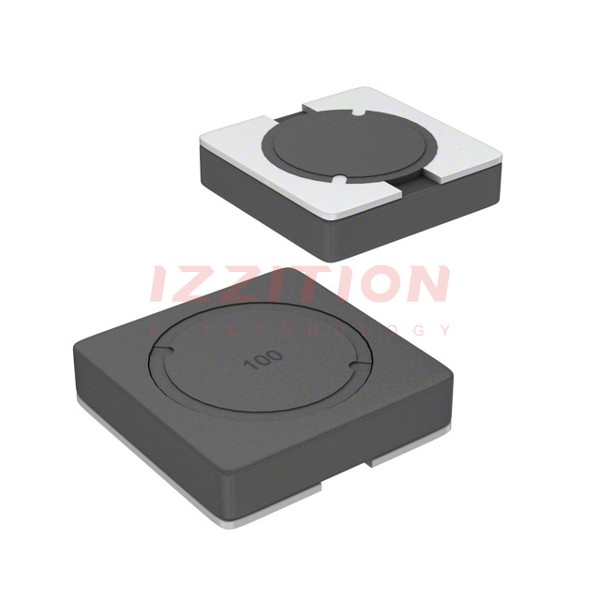

| Part Number | SRR4011-1R5YL | SRR3011-1R5YL | SRR4011-1R2YL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.5 µH | 1.2 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.3 A | 1.6 A | 2.7 A |
| Current - Saturation (Isat) | 2.1A | 1.3A | 2.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 56mOhm Max | 55mOhm Max | 48mOhm Max |
| Q @ Freq | 11 @ 7.96MHz | 11 @ 7.96MHz | 10 @ 7.96MHz |
| Frequency - Self Resonant | 121MHz | 124MHz | 133MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
