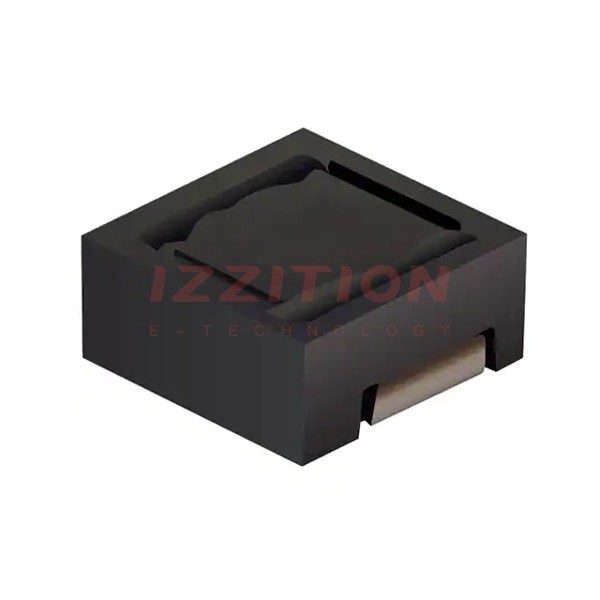

| Part Number | SRR3818A-4R7Y | SRR3818A-2R7Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 µH | 2.7 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1.9 A | 2.5 A |
| Current - Saturation (Isat) | 950mA | 1.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 120mOhm Max | 65mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 60MHz | 90MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
