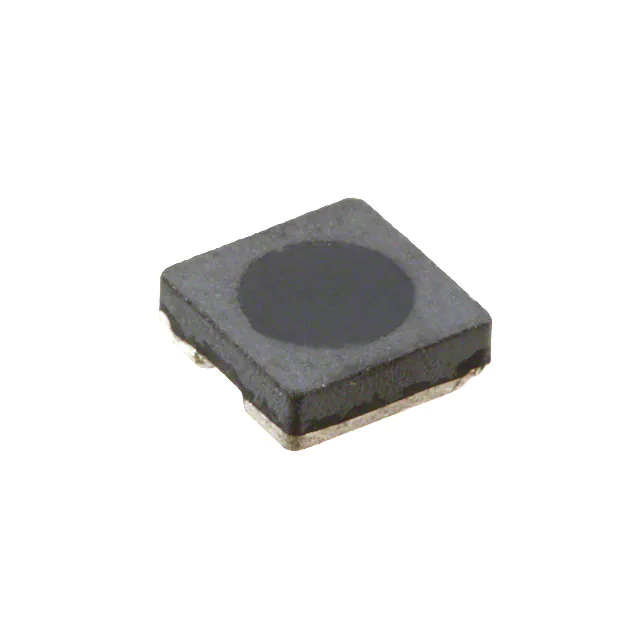

SRR3011-1R5YL
  • Share:

Bourns Inc. SRR3011-1R5YL

Manufacturer No:
SRR3011-1R5YL
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRR3011-1R5YL Datasheet
ECAD Model:
-
Description:
FIXED IND 1.5UH 1.6A 55 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:1.5 µH
Tolerance:±30%
Current Rating (Amps):1.6 A
Current - Saturation (Isat):1.3A
Shielding:Shielded
DC Resistance (DCR):55mOhm Max
Q @ Freq:11 @ 7.96MHz
Frequency - Self Resonant:124MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):0.051" (1.30mm)
0 Remaining View Similar

In Stock

$0.40
1,580

Please send RFQ , we will respond immediately.

Similar Products

Part Number SRR3011-1R5YL SRR3011-2R5YL   SRR4011-1R5YL
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite
Inductance 1.5 µH 2.5 µH 1.5 µH
Tolerance ±30% ±30% ±30%
Current Rating (Amps) 1.6 A 1.2 A 2.3 A
Current - Saturation (Isat) 1.3A 1A 2.1A
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 55mOhm Max 85mOhm Max 56mOhm Max
Q @ Freq 11 @ 7.96MHz 7 @ 7.96MHz 11 @ 7.96MHz
Frequency - Self Resonant 124MHz 112MHz 121MHz
Ratings - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Supplier Device Package - - -
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.051" (1.30mm) 0.051" (1.30mm) 0.051" (1.30mm)
