Please send RFQ , we will respond immediately.

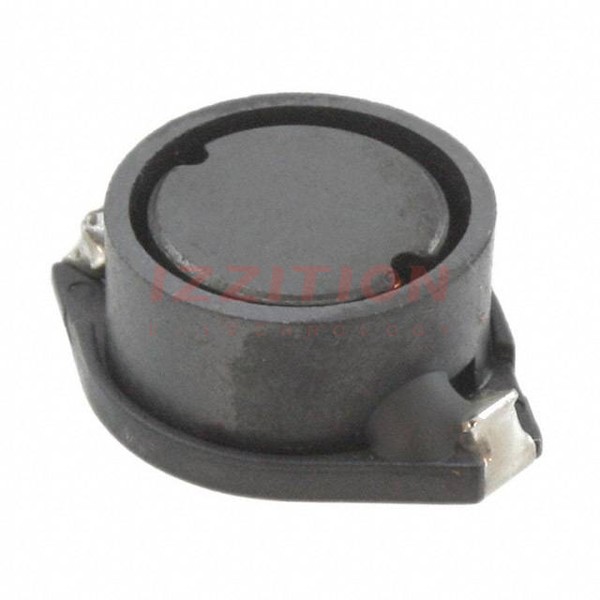

| Part Number | SRR1806-681M | SRR1806-680M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 680 µH | 68 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 540 mA | 1.6 A |
| Current - Saturation (Isat) | 1.1A | 3.4A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.47Ohm | 170mOhm |
| Q @ Freq | 19 @ 796kHz | 37 @ 2.52MHz |
| Frequency - Self Resonant | 2.1MHz | 6MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Height - Seated (Max) | 0.280" (7.10mm) | 0.280" (7.10mm) |
